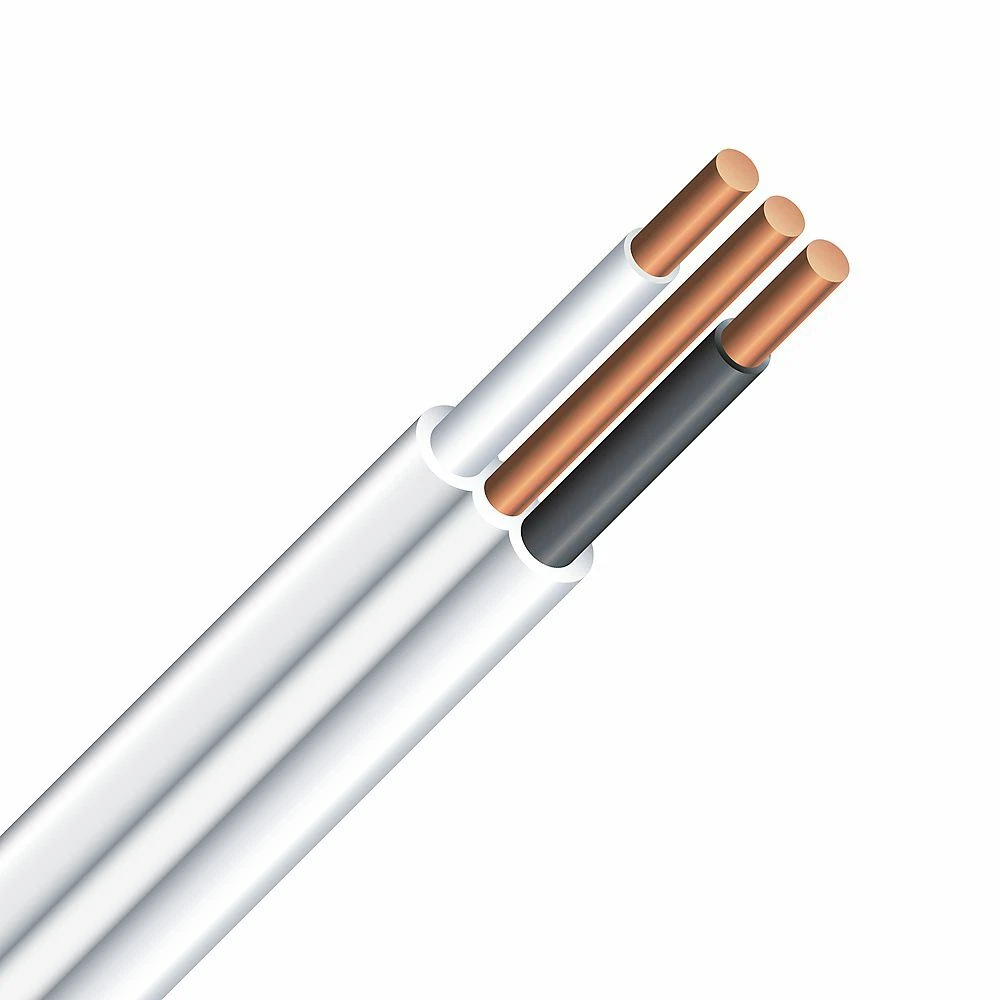

NMD90 Building Wire
CSA Certified
NMD90
Made in Vietnam
NMD90
Made in Vietnam
NMD90 (Non-Metallic sheathed cable, Dry locations, 90°C) is the standard residential wiring cable in Canada. Features bare copper conductors, PVC insulation, and a nylon-jacketed sheath for easy installation.
Key Features
- Conductor: Solid or stranded bare copper
- Insulation: PVC, 90°C rated
- Sheath: PVC with nylon jacket
- Voltage: 300/600V
- Available sizes: 14/2, 14/3, 12/2, 12/3, 10/2, 10/3
- Coil lengths: 75m, 150m, 300m
- Colors: White sheath with color-coded conductors
Technical Specifications
| Size | Conductors | AWG | Voltage | Temp | Standard |
|---|---|---|---|---|---|
| 14/2 NMD90 | 2+Ground | 14 | 300/600V | 90°C | CSA C22.2 No.131 |
| 14/3 NMD90 | 3+Ground | 14 | 300/600V | 90°C | CSA C22.2 No.131 |
| 12/2 NMD90 | 2+Ground | 12 | 300/600V | 90°C | CSA C22.2 No.131 |
| 12/3 NMD90 | 3+Ground | 12 | 300/600V | 90°C | CSA C22.2 No.131 |
| 10/2 NMD90 | 2+Ground | 10 | 300/600V | 90°C | CSA C22.2 No.131 |
| 10/3 NMD90 | 3+Ground | 10 | 300/600V | 90°C | CSA C22.2 No.131 |
